How to Connect Autel MK908P to vehicle by J2534 Device

Here UOBD2 show you the procedures on how to build connection between Autel MK908P Pro and vehicle by J2534 adapter.

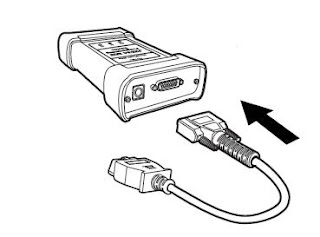

1.Connect the main cable's female adapter to the vehicle data connector on the VCI unit,and tighten the captive screws.
A.for Wireless BT Diagnostic Interface

B.for J2534 ECU Programming Device

2.Connect the cable's 16 pin male adapter to the vehicle's DLC,which is generally located under the vehicle dash.

3.Power up the MaxiCOM display tablet,make sure the tablet has a charged battery or is connected to the PC power supply.

4.Pairing the display tablet with the VCI device via wireless BT to establish a communication link.

Note:The MaxiCOM MK908P display table and VCI device is configured to automatically synchronize with each other when you first use it,so there is no need to perform any pairing procedure.

5.When the VCI device is properly connected to the vehicle and the MaxiCOM display tablet,the VCI status button at the bottom bar on the display screen shows a green tick at the corner,indicating the platform is ready to start vehicle diagnosis.

More about AUTEL MK908 PRO,please check here:
